SONEXone™ |
| Melamine Foam Acoustical Panels |
• Fiber Free
• Light Weight
• Economical
• Class A Fire Retardent |
 |
|
MATERIAL: Melamine Acoustical Foam
PATTERN: Convoluted Surface - Sculpted surface deflects and disperses sound waves
FEATURES: Porous
APPLICATIONS: Suitable for a wide variety of applications and environments for attractive noise control solutions. Offices, manufacturing plants, schools, broadcasting and recording studios.
THICKNESS: 2”, 3”
SIZE: 2’x4’
DENSITY: 0.7lbs/cub. ft.
COLORS: Natural, Painted, Hypalon* and Colortec Finishes
FLAMMABILITY: ASTM E84, Class A. Natural: F/S 5, S/D 45; Painted: F/S 10, S/D 10; Hypalon: F/S 25, S/D 185 Colortec: F/S 5 S/D 90
INSTALLATION: ASI S.T.O.P. Noise Acoustical Adhesive
|

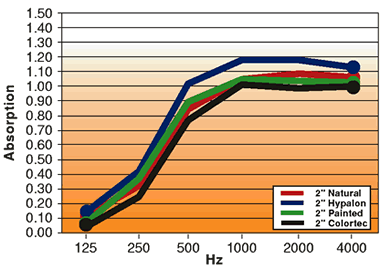

| SONEXone: SabinsPer Baffle - Type A & B Mountings |
| |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
Ave |
|
| B 2” Natural |
0.11 |
0.33 |
0.85 |
1.05 |
1.09 |
1.06 |
0.85 |
| B 2” Hypalon |
0.13 |
0.41 |
1.02 |
1.18 |
1.18 |
1.13 |
0.95 |
| B 2” Painted |
0.07 |
0.37 |
0.89 |
1.05 |
1.04 |
1.03 |
0.85 |
| B 2” Colortec |
0.07 |
0.26 |
0.77 |
1.01 |
0.99 |
1.00 |
0.75 |
| A 3” Natural |
0.09 |
0.68 |
1.20 |
1.18 |
1.12 |
1.05 |
1.05 |
| A 3” Hypalon |
0.13 |
0.85 |
1.25 |
1.22 |
1.13 |
1.14 |
1.10 |
| A 3” Painted |
0.15 |
0.72 |
1.21 |
1.20 |
1.15 |
1.13 |
1.05 |
|
* Hypalon repels oils, acids and other solvents for easier cleaning.
* Hypalon is a registered Trademark of the Dupont Company.
|
|
|
|
