NOISE S.T.O.P™ INTERIOR/EXTERIOR ACOUSTICAL – SOUNDPROOF WINDOWS
Engineered to be the market’s first affordable, high-performance, acoustical window
Typical Applications:
- Recording Studios
- Commercial Windows
- Industrial
- Military
- Victim/Interrogation Room
|
Features:
- A truly affordable high performance noise control window
- Performance tested & certified at an affordable price
- STC Ratings of 45 to 56
- Custom engineered and manufactured to any size at no extra charge
- Anodized aluminum frames with standard frame finishes of natural aluminum and bronze (also available in other specialty finishes)
- Quick turnaround delivery upon order!
- Easy Installation – No need for a glazing contractor or special tools required – Installation instructions and necessary shop drawings included
- Fast and easy do it yourself installation
- Custom glass available (safety glass, mirror pane, tinted and etc.) Note: using custom glass may change the STC value
- Glass shipped separately to avoid breakage, easy snap in glass installation on job site
- Noise S.T.O.P. acoustical windows are only available from Acoustical Surfaces, Inc.
|

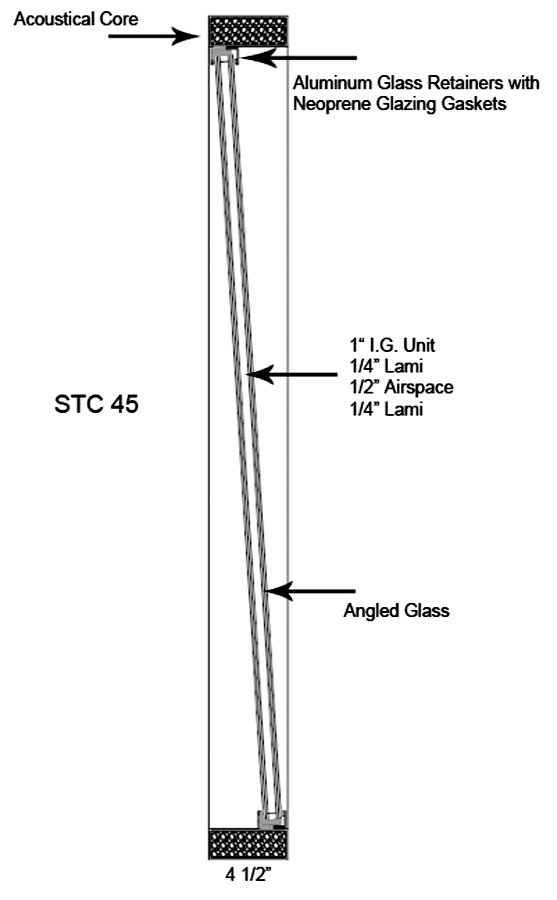

Noise S.T.O.P.™ Window Model Studio 4 |
Features:
- STC rating up to 45
- Custom sized to fit your need
- Min size of 2′ × 2′
- Max size of 4′ × 8′ rectangle or 5′ × 5′ square clear opening
- Larger units available with mullions
- Frames available in clear anodized or bronze anodized
- Optional tinted, one-way mirror pane, safety glass, etc.
- 4° angled glass for max acoustical performance – Optional flat glass configuration
Window Specifications:
- 1″ insulated glass unit with 2 pieces of 1/4″ laminated glass
- Angled glass for maximum acoustical performance
- Acoustically treated frames and seals
- Class A-1 ASTM E-84 Nonflammable Sound Silencer™ acoustical frame insert
- Fits any wall thickness by insetting or offsetting acoustical window
|
Click Image to Enlarge |
Noise S.T.O.P.™ Window Model Studio 5 |
Features:
- STC rating up to 49
- Custom sized to fit your need
- Min size of 2′ × 2′
- Max size of 5′ × 8′ rectangle
- Larger units available with mullions
- Frames available in clear anodized or bronze anodized
- Optional tinted, one-way mirror pane, safety glass, etc.
Window Specifications:
- 3/8″ laminated glass with air cavity and 1/4″ laminated glass
- 4 1/2″ aluminum frame
- Acoustically treated frames and seals
- Class A-1 ASTM E-84 Nonflammable Sound Silencer™ acoustical frame insert
- Fits any wall thickness by insetting or offsetting acoustical window
|
Click Image to Enlarge |
Noise S.T.O.P.™ Window Model Studio 6 |
Features:
- STC rating up to 56
- Custom sized to fit your need
- Min size of 2′ × 2′
- Max size of 4′ × 8′ rectangle or 5′ × 5′ square clear opening
- Larger units available with mullions
- Frames available in clear anodized or bronze anodized
- Optional tinted, one-way mirror pane, safety glass, etc.
- 4° angled glass for max acoustical performance – Optional flat glass configuration
Window Specifications:
- One insulated glass unit with 2 pieces of 1/4″ laminated glass plus an air cavity and an additional pane of 3/8″ laminated glass
- 6 3/8″ aluminum frame
- Acoustically treated frames and seals
- Angled or flat glass for maximum acoustical performance
- Class A-1 ASTM E-84 Nonflammable Sound Silencer™ acoustical frame insert
- Fits any wall thickness by insetting or offsetting acoustical window
|
Click Image to Enlarge |
|
