STUDIO 3D – NOISE S.T.O.P.™ SOUNDPROOF INTERIOR DOORS
- Low cost High performance
- STC Ratings Up To 56
- Products Tested Per ASTM E-90
- Custom Manufactured Acoustic Door to any size specifications
- Appx. 300 pound door assembly
- 2 3/4″ 6 Layer door assembly
- Comes pre-hung and assembled
- Adjustable soundproof jambs and seals
- Ready to stain/paint to match your décor
- Best performance wood finished door assembly available
- Automatic sill
- Heavy duty hinges (4)
|
DOOR AND FRAME FEATURES:
STC Ratings: Stop Noise acoustical doors are available with ratings up to STC-56, and acoustical windows up to STC-56 Studio 6.
Testing: Stop Noise Door products are tested in accordance with the most recent ASTM E90 standards at accredited Acoustical Laboratories.
Frame Configuration: In addition to our standard frame designs, we can engineer special frame profiles to complement wall construction and architectural style.
Services: ASI offers various installation services and will provide the necessary shop drawings, certification of test results and assistance with compliance for all industry standards.
Guarantee: Stop Noise Door products are guaranteed to be free of defects in workmanship and quality for a period of two years. |
DOOR SPECIFIC FEATURES:
Configuration: Doors are available in a flush design or with vision elites and as single or pairs of hinged doors.
Sizes: Select from standard, or custom pairs as large as 8′ w × 10′ h.
Hardware: Door, frame, trim, handle, hinges, perimeter sound seals and door bottom are supplied as part of the tested assembly. Dead bolt or mortise locks available.
Finishes: Oak, ready to stain. Optional maple, cherry, birch and any other wood species are available. Optional primed metal finish.
Hardware: Satin Chrome standard. 7 additional custom order finishes available.
Required Installation kit Includes:
- 2 Packs Shims
- 4 Heavy Duty Jamb Screws
- Backer Rod
- 1 Tube Acoustical Sealant
|
Standard Hardware |
|
|
|
Venice – Passage Only |
Venice – Thumb Turn Deadbolt |
Venice – Keyed Deadbolt |
Download Hardware Options
Download Old Hardware Options
|
Click on images to enlarge
|
|
|

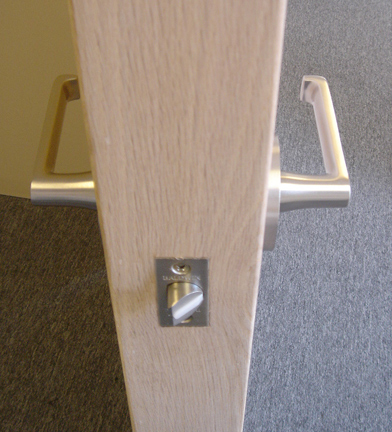

2 3/4″ Door Thickness |

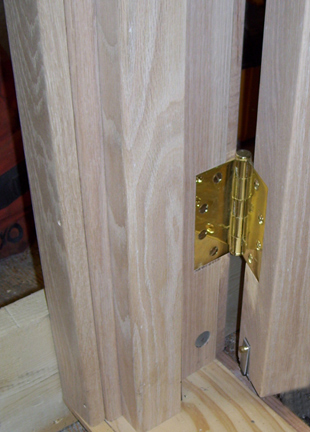

Mortise Drop Seal & Strike Plate |
Exposed Jamb Kit |
|
|
|

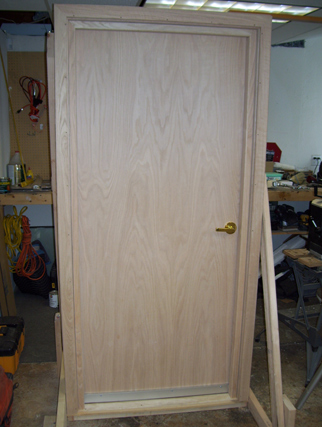

Wood Caps Over Jamb Kit |
Window Lite Kit |
Smaller Window Kit |
|
|
|

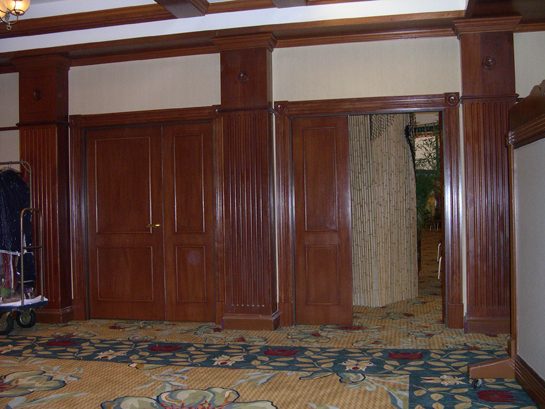

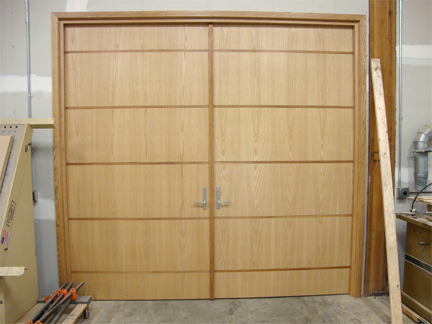

Double Door |
Double Door |
|
|
|
|
|
|
|
Left Hand Swing |
Right Hand Swing |
|
|
|
|
Left Hand Active – Double Door |
Right Hand Active – Double Door |
|
|
