ADJUSTABLE DOOR SEALS
Surface Mounted Automatic Door Seals
- Reduces Sound Through Door Seals
- Economical
- Easy to Install
- Durable
|
Note: Kit pieces are sold separately and custom sizes are available upon request.
| Kit 1 – Standard |
Kit 2 – Heavy Duty |

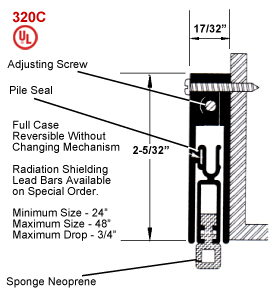

Automatic Door Bottom 320C |
Automatic Door Bottom 330C |
 |
 |
Adjustable Jamb Seal 33C(3 piece set; 2 – 7′ long & 1 – 3′ long) |
Adjustable Jamb Seal 599C(3 piece set; 2 – 7′ long & 1 – 3′ long) |
 |
 |
Buy Standard Kit |
Buy Heavy Duty Kit |
Door Frame Sound Gaskets |
 |
 |
| Please Note: Door Bottoms are not designed to seal directly on carpet. For best result door bottoms should seal on a solid surface. The solid surface should be positioned above the level of the floor covering on either side of the door. |
|
| Acoustical Performance (STC) in Accordance with ASTM E90-75 |
| Model |
Door Caulked Shut STC |
With Door Bottom STC |
| Model 320C – No Threshold |
32 |
28 |
| Model 330C – No Threshold |
44 |
37 |
| Model 330C – With Threshold |
51 |
43 |
NOTE: Standard 1-3/4″ Solid Core Door Performance
5 lbs/sf STC – 22 (No Seals), 33 (with Door Seals)
7 lbs/sf STC – 46 |
|
 |
 |
 |
