SQUARELINE™

Acoustical Metal Ceiling Tiles

  • Expanded Metal
  • Decorative – High Style
  • Fiber Free
  • Excellent sound absorption qualities
  • Affordable and easily installed

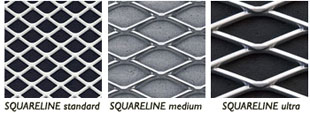

Squareline Standard Chrome Metal Charcoal Foam Squareline Medium Chrome Metal Charcoal Foam Squareline Ultra Chrome Metal Charcoal Foam
SQUARELINE Standard SQUARELINE Medium SQUARELINE Ultra
MATERIAL: Expanded perforated metal with melamine foam backing.
PATTERN: Standard, Medium and Ultra
FEATURES: Expanded metal design
APPLICATIONS: Offices, conference rooms, board rooms, airports, lobbies, convention centers, retail stores.
THICKNESS: .25″ or .50″
SIZES: Nominal 24″ × 24″, 24″ × 48″
COLOR: White or chromed metal with colored backing inserts (light gray, charcoal gray and white)
FLAMMABILITY: Class 1 fire-rated for smoke density and flame spread.
INSTALLATION: Lay-in – 15/16″ teebar grid system. Slight tegular edge.

SQUARELINE Standard


Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat or Beveled profile
Panel Sizes: 24″ × 24″
Open Surface: 68.2%

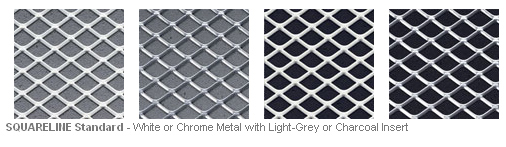

Squareline Standard White Metal Light Grey Foam Squareline Standard Chrome Metal Light Grey Foam Squareline Standard White Metal Charcoal Foam Squareline Standard Chrome Metal Charcoal Foam
White Metal
Light-Grey Insert		 Chrome Metal
Light-Grey Insert		 White Metal
Charcoal Insert		 Chrome Metal
Charcoal Insert

SQUARELINE Medium


Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24″ × 24″ or 24″ × 48″
Open Surface: 62.5%
**NOTE*** 50 tile minimum order Requires 12-14 week lead time

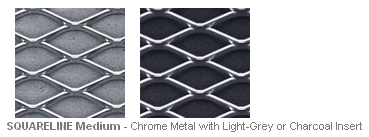

Squareline Medium Chrome Metal Light Grey Foam Squareline Medium Chrome Metal Charcoal Foam
Chrome Metal
Light-Grey Insert		 Chrome Metal
Charcoal Insert

SQUARELINE Ultra


Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24″ × 24″ , 24″ × 48″ or 48″ × 48″
Open Surface: 71.4%
**NOTE*** 50 tile minimum order Requires 12-14 week lead time

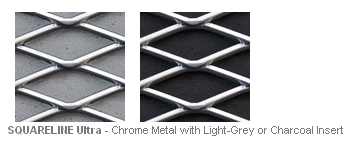

Squareline Ultra Chrome Metal Light Grey Foam Squareline Ultra Chrome Metal Charcoal Foam
Chrome Metal
Light-Grey Insert		 Chrome Metal
Charcoal Insert

Sound Absorption/Noise Reduction

  125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
0.25″ Thick 0.37 0.59 0.30 0.50 0.75 1.09 0.55
0.50″ Thick 0.40 0.63 0.43 0.60 0.77 0.89 0.61

WHITELINE SQUARELINE Lighting
Lighting can be combined with both WHITELINE and SQUARELINE Ceiling Tiles.
