Sailcloth & Vinyl Encapsulated Acoustical Baffles

NOISE S.T.O.P.™ FIBERGLASS BAFFLE

Sailcloth & Vinyl Encapsulated Acoustical Baffles

  • Cost Effective
  • High Performance
  • Architecturally Decorative
  • Custom Engineered & Manufactured
MATERIAL: Fiberglass core encapsulated in Polyvinyl Chloride Film or Sailcloth.
PATTERN: Plain – Type A or Type B mounting.
FEATURES: Cost effective, lightweight, high acoustical performance, moisture and chemical resistant.
APPLICATIONS: Any large area where noise and reverberation needs to be reduced. Gymnasiums, community centers, sports arenas, lunch rooms, swimming pools, factories, animal hospitals, food processing plants, large open plan areas.
THICKNESS: 1″, 2″
SIZES: Nominal 2′ × 4′
CORE DENSITY: 1#, 1.65#, 2.25# & 3#/cub. ft.
COLOR: PVC Film – 14 Colors, Sailcloth – 14 colors
FLAMMABILITY: Class A Sailcloth ASTM E84, F/S 15 S/D 30. PVC, F/S 25 S/D 30
INSTALLATION: Grommets, Direct Hang, Spring Clips, Tie Wraps
Slight puckering on fabric face Clean, Smooth Facing
“A” – Slight puckering on fabric face “B” – Clean, Smooth Facing

SABINS PER BAFFLE PER ASTM C423-90a & E795-92

  125HZ 250Hz 500Hz 1KHz 2KHz 4Khz AVG.
2″ – 3# Sailcloth 1.73 5.14 10.79 13.12 8.69 4.60 9.43
2″ – .75# PVC 6.88 7.12 7.12 8.08 8.16 8.88 7.75
2″ – 1.65# PVC 5.20 7.73 8.93 8.10 8.00 8.06 8.19

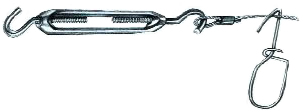

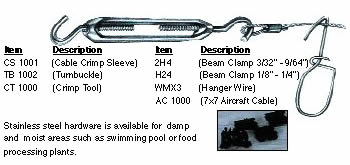

MOUNTING HARDWARE


Baffle Mounting Hardware
Mounting Hardware
Item Description
CS 1001 Cable Crimp Sleeve
TB 1002 Turnbuckle
CT 1000 Crimp Tool
2H4 Beam Clamp 3/32″-9/64″
H24 Beam Clamp 1/8″-1/4″
WMX3 Hanger Wire
AC 1000 7×7 Aircraft Cable
Stainless steel hardware is available for damp and moist areas such as swimming pools or food processing plants.
