ECHO ELIMINATOR™ |

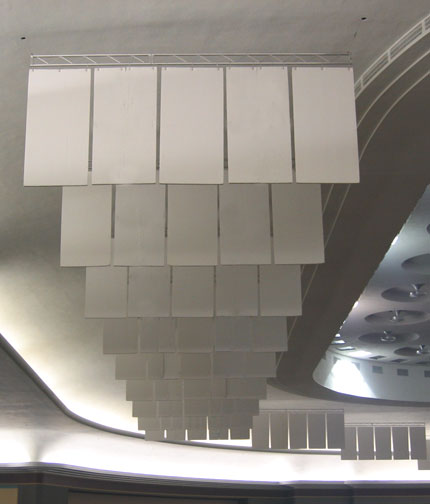

| Hanging Acoustical Baffles |
• No Fiberglass
• Economical
• Recycled Cotton Material
• LEED™ more information
|
|
|
MATERIAL: Bonded Acoustical Cotton (B.A.C.). 100% Recyclable, Fiberglass Free.
PATTERN: Soft Textured Surface
FEATURES: Economical, Multi-Purpose, High Performance, Durable, Lightweight.
APPLICATIONS: Gymnasiums, Auditoriums, Classrooms, Music Rooms, Arenas & Stadiums, Churches, Offices, Computer Rooms, Restaurants/Cafeterias, Residential, Concert Halls & Theaters, Pro Audio, Gun Ranges, Manufacturing Plants, Machine Enclosures, Water Treatment Plants.
THICKNESS: 1”, 2”
SIZES: 2’ x 4’, Custom Sizes & Die Cut Parts Available
COLOR: White, Marble Light Blue, Light Grey, Beige*, Charcoal, Pure Blue, Navy Blue, Burgundy and Hunter Green (Paintable), Cleanable Dupont Hypalon or Film Available
FLAMMABILITY: ASTM E84, Class A. Flame Spread: 5 Smoke Developed: 35
Larger images show grommet color options. Click each color swatch to see larger image.
 |
 |
 |
 |
 |
 |
|
|
|

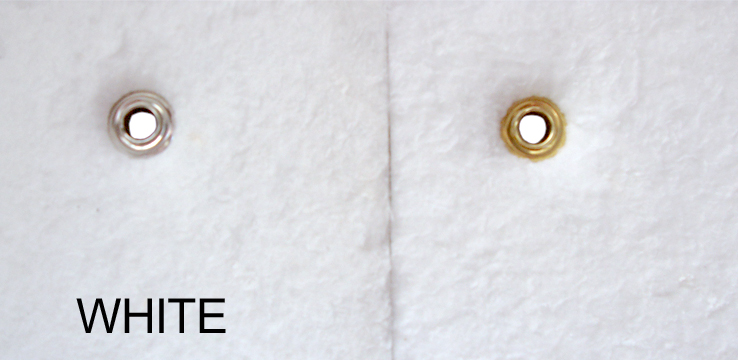

| White |

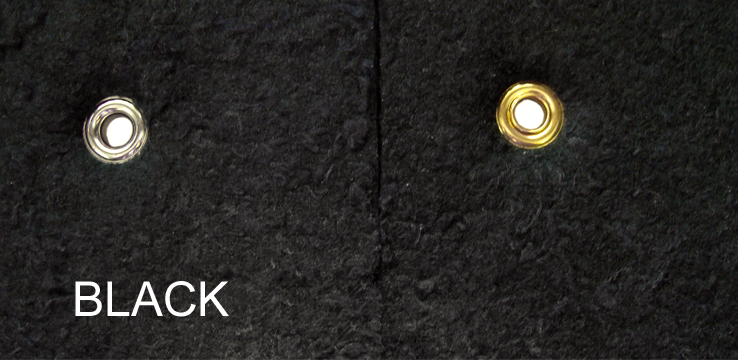

Black |

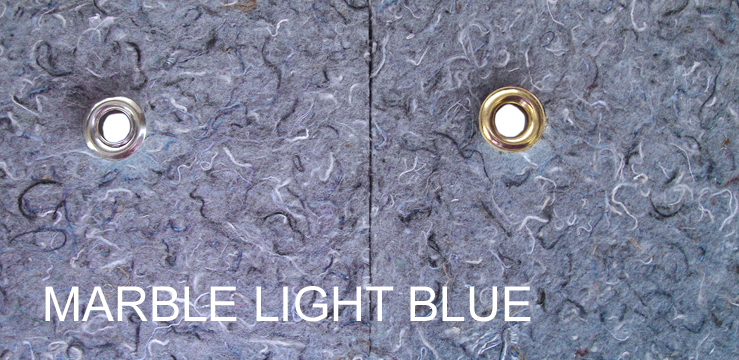

Marble Light Blue |

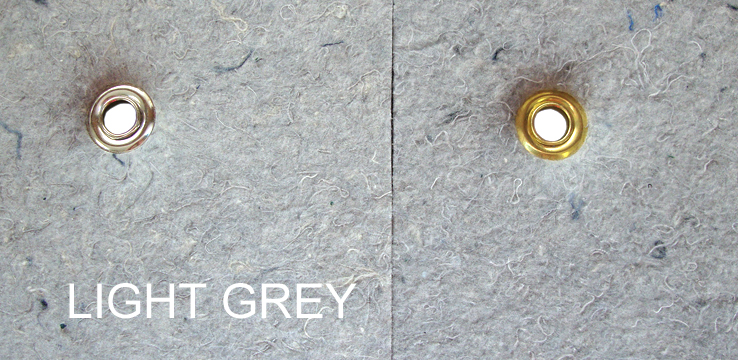

Light Grey |

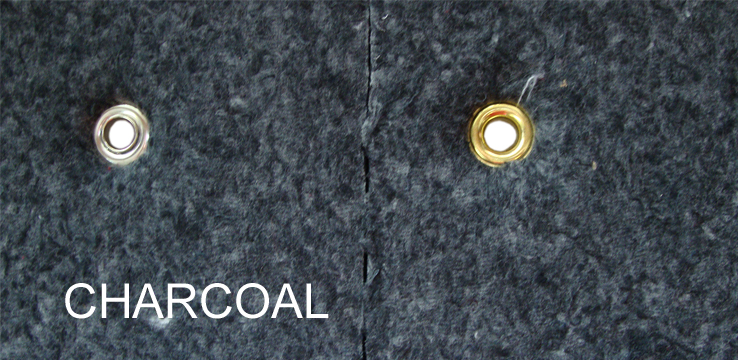

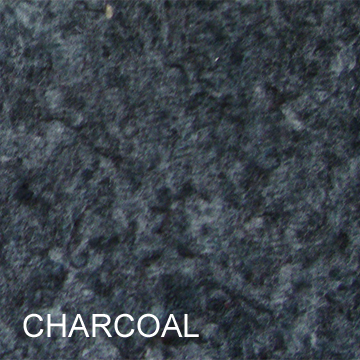

Charcoal |

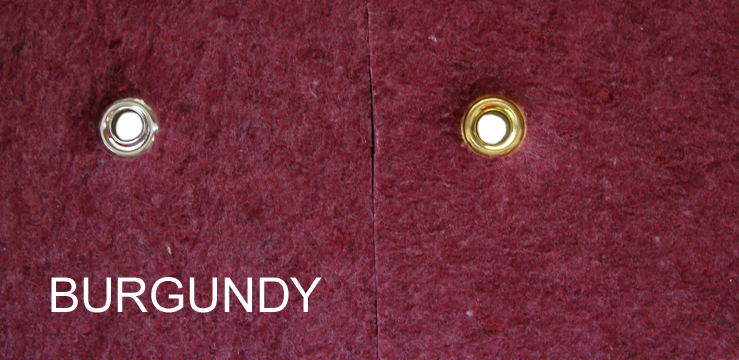

Burgundy |
|
|
|
 |
 |
 |
|
 |
*Beige is a custom color and may not always be available. Dye lots are subject to color variation.
Please consult with us before specifying or ordering this color. |

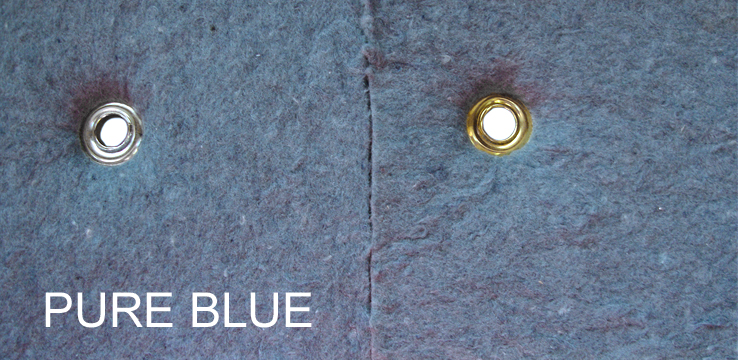

| Pure Blue |

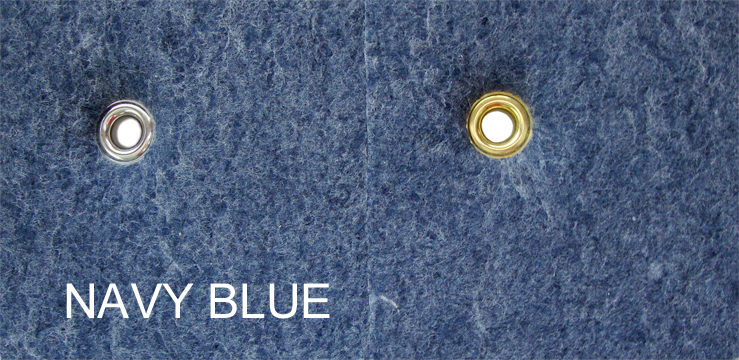

Navy Blue |

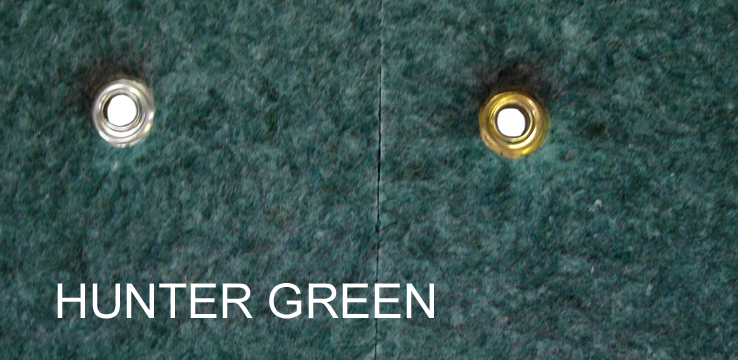

Hunter Green |
|

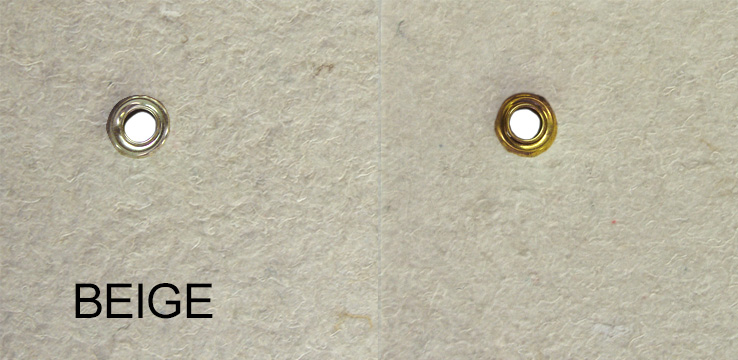

Beige* |
| Grommet Color Options - Gold or Silver |
 |
|
B.A.C. BAFFLE:
Sabins/Baffle |
| |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
Ave |
1” x 2’ x 4’
2” x 2’ x 4’ |
2.43
2.40 |
4.93
6.55 |
8.34
12.86 |
12.35
17.46 |
15.57
18.49 |
16.73
16.77 |
10.30
13.85 |
|
|
|
|
|
